Luoyang Hongyuan Bearing Technology CO., LTD is specialized at producing high precision YRT Rotary table bearing and high precision crossed roller bearing in China.



YRT rotary table bearing and crossed roller bearings, with precision of P5, P4, or P2, outer ring diameter ranges between Ø50mm-Ø1800mm.YRT rotary table bearings cover YRT series, YRTS Series, YRTM series, ZKLDF series; Crossed roller bearings cover HYRB series, RE series, RU series, RA SERIES, CRBH series, SX series, XR series crossed roller bearings



With the innovative development and many years experience, Hongyuan owns many state patents of utility models and innovative patents.



Hongyuan has qualified with ISO9001:2008 Certification. 50% products exported to Germany, Italy, Spain, Korea, India, America, Switzerland, England, France and TAIWAN area, and 70% marketing share in China.



“Accountable and innovative” is Hongyuan’s management philosophy. Customers’ demand is the center of Hongyuan’s action. With sincere service and continuous innovation, Hongyuan will provide customers the best quality products with best service, and will create greater value for customers.



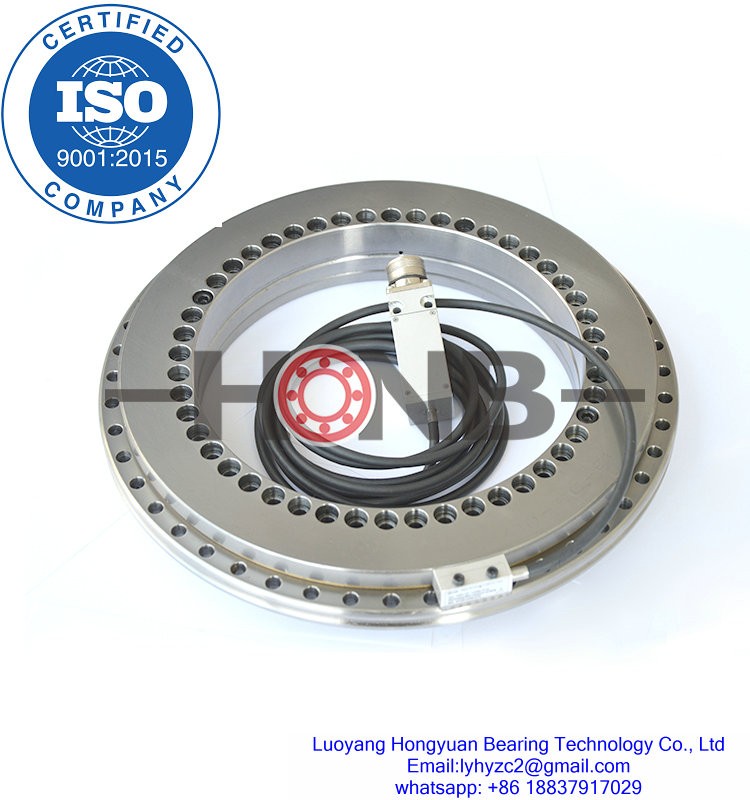

YRTM basic series with integral angular measuring system, can achieve accurate angle measuring, the highest precision can achieve to 1 arcseconds, and greatly suitable for application which has high requirements on angle positioning precision.

the measurement of angular displacement is very important in modern industry. Specialiy in machine tool industry, the rotation angle of mechanical parts was often highly demand. this needs to accurately masure and control the angular displacement.

at present, grating encoder, magnetic gate encoder was commonly used when measuring the angular displacement. but Austria AMOSIN steel grade measurement system we choose has four significant advantages of high precision (the highest resolution angle<2arc-second), stain resistance, no electrical induction, high adaptability to circumstance.

the YRT rotary table bearing with this measurement system, have very high precision, can bear double-direction axial load, radial load and  tilting moment. that is very suitable for the high precision demand field, such as high precision rotary table in machine tools industry, dividing head and scientific experiment and measurement and so on.

*X* Real-time output signals, is the ideal solution for driven directly.

Type	Dimensions											Fixing hole
	d	D	B	H	B	D1	D2	J	J1	F	L	Inner ring				Outer ring
	unit：mm											do	ds	Ts	QTY4)	dL	QTY4)
												mm				mm
YRTM150	150	240	43*	26	12	214	215	165	225	17	121	7	11	6.2	32	7	33
YRTM180	180	280	46*	29	15	244	245	194	160	17	152	7	11	6.2	44	7	45
YRTM200	200	300	47*	30	15	274	276	215	285	17	152	7	11	6.2	44	7	45
YRTM260	260	385	55	36.5	18	345	345.5	280	365	18	192.5	9.3	15	8.2	32	9.3	33
YRTM325	325	450	60	40	20	415	415.5	342	430	19	225	9.3	15	8.2	32	9.3	33
YRTM395	395	525	65	42.5	20	486	486.5	415	505	19	262.5	9.3	15	8.2	42	9.3	45
YRTM460	460	600	70	46	22	560	560.5	482	580	19	300	10	15	8.2	42	10	45



Type	QTY of the Bolts	Axial Radial Run-out	Thread HandlingHoles		pitch1）t	Screw Tightening Torque	Basic load rating				Tilting Rigidity		Friction torque3)	Weight
							Axial		Radial
							Dynamic	Static	Dynamic	Static
						MA2）	Ca	Coa	Cr	Cor	CKL	CKL1
		μ m	G	number	QTY*t	N m	KN				kNm/mrad		Nm	≈Kg
YRTM150	4	3	M8	3	36*10°	14	112	630	56	170	83	14	10	6.2
YRTM180	4	4	M8	3	48*7.5°	14	118	710	69.5	200	125	21	12	7.7
YRTM200	4	4	M8	3	48*7.5°	14	120	765	81.5	220	160	27	14	9.7
YRTM260	4	6	M12	3	36*10°	34	160	1060	93	290	320	53	20	18.3
YRTM325	4	6	M12	3	36*10°	34	275	1930	120	345	630	105	40	25
YRTM395	6	6	M12	3	48*7.5°	34	300	2280	186	655	1100	185	55	33
YRTM460	6	6	M12	3	48*7.5°	34	355	2800	200	765	1700	285	70	45

2. Structure introduction

the Austria AMOSIN steel grade measurement system including three parts:steel grade feet, reading-head and electronic assessment. the steel grade feet was installed on the inner ring of the bearing(figure 2), it is a steel ring with grids uniform distribution on. the reading-head was installed on the outer ring of the bearing (figure 1), it is near the steel grade feet, but not touch, there is a 0.1–0.2mm clearance between them.

When Working, the bearing rotary, the steel grade feet and the reading- head (figure 3) do non-contact relative motion, then turn the the data wich was collected by induction to the electronic evaluation  (figure 6) through the cable (figure 5). The electronic evaluation then transfer the information to square wave or Positive harmonic signal. these signal was put into the numerical control system In the machine tools, to realize the measuring and control to the angular displacement.

Advantage of the steel measuring system:

A. No- contact inductive encoder, no wearing.

B. the precision can compare to the optical encoder, high precision<2 arc-second

C. Double reading-head measuring system can correct the deviation on  bearing radial in real time.

D. High speed, high dynamic resolution, high dynamic performance.

E. No magnetic components, no hysteresis reaction, no demagnetization dangerous

F. Strong anti-jamming to solid grain, oil etc. Protection grade IP67, resistance to water pressure and dense dust, not sensitive to any type of dirt and pollutants.

G. Compact design, no matter for narrow installation space.

H. Easy for installation, high speed for adjustment, high resistance to impact and vibration, good stability, high reliability

I. Can output sine wave (1VPP) and square wave signal (TTL), compatible with Siemens and Fanuc numerical control system, etc

3. Application parameters

AMOSIN steel measuring system has many different kinds of configuration, we can offer the best solution according to your requirement.

*X*When order, the buyer should provide the following information of location accuracy rotary speed for real-time working, the length of the cable, the kinds of the  signa l output, number, the number and type marked on the reference point.



the steel grade feet divided into three precision grades of +-3 μm (Arc length), +-5 μm(Arc length), +-10μm(Arc length).

Stander for reference points mark: every 360 degrees. We can do as clients’ actual application: more reference points mark

Signal output type: IVPP or TTL



*X* for other specification of YRTM rotary table bearing, please contact with HONGYUAN.

4. Installation guide

the installation method is the same as the standard YRT bearing, (please reference chapter three: Design and installation guide)



for YRTM rotary table bearings with integral measuring system. the measuring system was installed on the bearing and adjust to the best before ship. You can be installed and to be use after receipt, no need to be  re-adjusted.

Note: Must be careful when moving the measuring system, as it is precision electronic components, the collision may reduce the precision or damage it. If the product can’t be work because of collision, please contact HONGYUAN in time, don’t solve it by yourself.

Don’t knock the bearing when do the installation.

5. Special design

Avalible by agreement. for the special dimension, reference points, the space of reader head, the length of the cable, please contact with HONGYUAN.(HONBbearing02)
