Axial Radial Bearing YRT100 (100x185x38mm) Rotary Table Bearing HONB High rigidity slewing turntable bearing



A . Axial Radial Bearing Parameters



Brand- HONB



Model number- YRT100



Inner ring(mm)- 100



Outer ring(mm)- 185



Width(mm)- 38



Weight(Kg)- 4.1



Materials- GCR15/GCR15SiMn



Precision grade- P4/P2



Lubrication type- Grease lubrication



Rotating part- Inner ring/Outer ring



Load direction- Multi-load



Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring

B . Axial Radial Bearing YRT100 Specification Sheet



Model Number

Main dimensions  (mm)

Fixing Hole (Inner ing)

Fixing Hole (Outer ing)

Number of retaining screws

Extraction thread hole

Number of pitches x Angle

d

D

H

H1

C

D1

J

J1

d1

d2

a

Num

d3

Quantity

G

Quantity

YRT100

100

185

38

25

12

160

112

170

5.6

10

5.4

16

5.6

15

2

M8

3

18×20°

Screw  tightening torque(Nm)	Basic load rating (Axial)		Basic load rating (radial)		Limiting speed (Grease) r/m	Bearing  frictional torque(Nm)	Weight (Kg)	Model Number
	Ca KN	Coa KN	Cr KN	Cor KN
8.5	76.5	415	47.5	120	430	3	4.1	YRT100



C . Axial Radial Bearing YRT Details



Product Features



Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.



Series Model No.  (HONBbearing05)



YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200



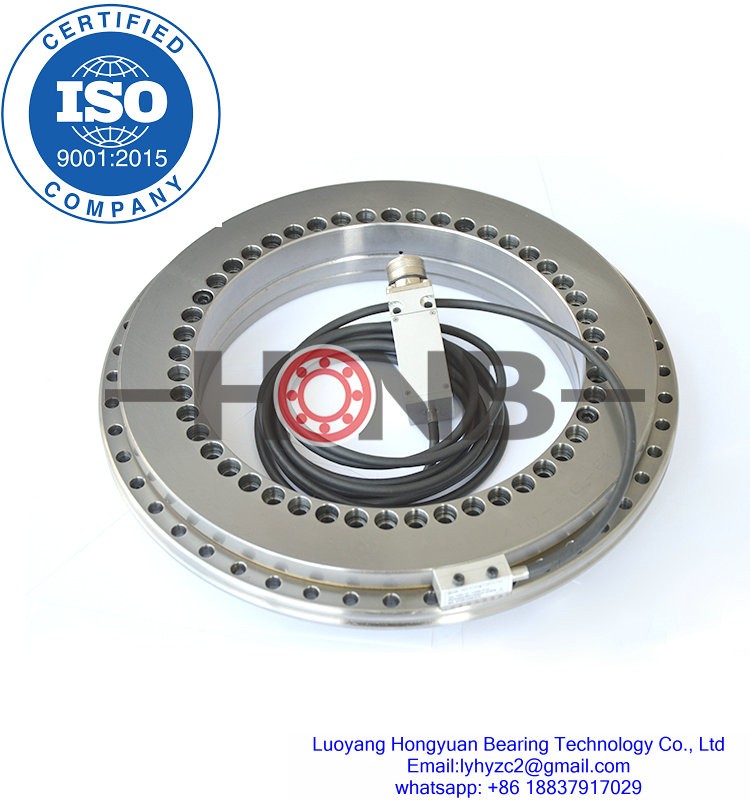

YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580

  ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580

Applications



-Precision machine tools



-precision Turntable, NC rotary table



-Rotation part of Machine tools



-Inspection instrument,Medical equipment



-Indexing plate of other precision machines etc



D. Installation



Design & Installation for  Axial Radial Bearing YRT :



Structure with the requirements shown in Figure 1



Retaining screws secure the bearing components during transport. For installing the bearing easier, the screws should be loosened before fitting, and secured again or replaced by positioning screws after fitting.



The L-section ring can be fitted with unsupported or supported ring.



a)  Without supported ring, the bearing type is YRT.



b)  With supported ring, the bearing type is YRT-VSP.And the whole surface of L-section should be supported.



Mounting forces must only be applied to the YRT bearing ring to be fitted, never through the rolling elements.



Tighten the fixing screws in crosswise using a torque wrench (HONBbearing02)
