CSG(CSF)-25 Cross Roller Bearing for Harmonic Drive Gear

Author: hongyuanTime:

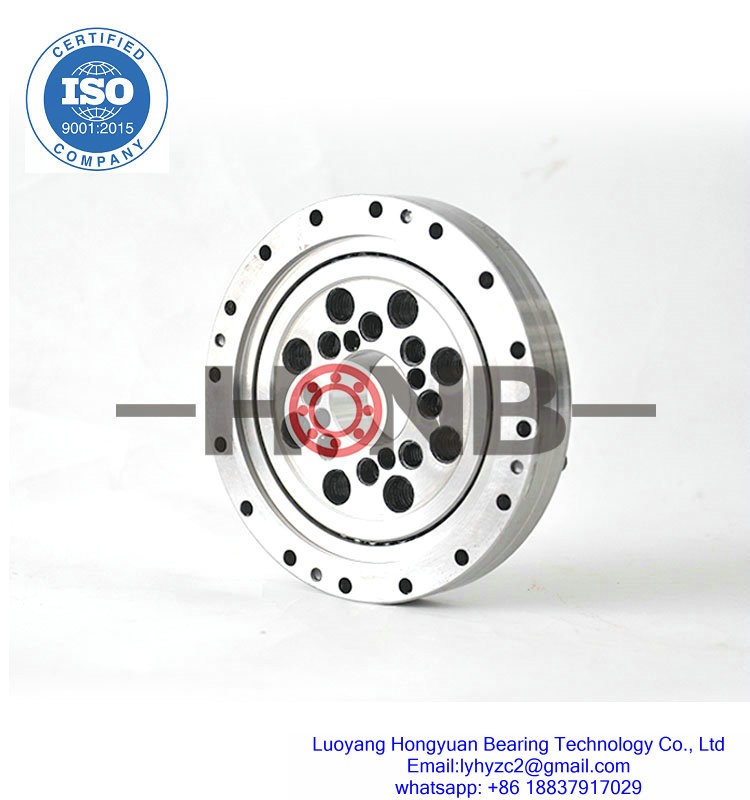

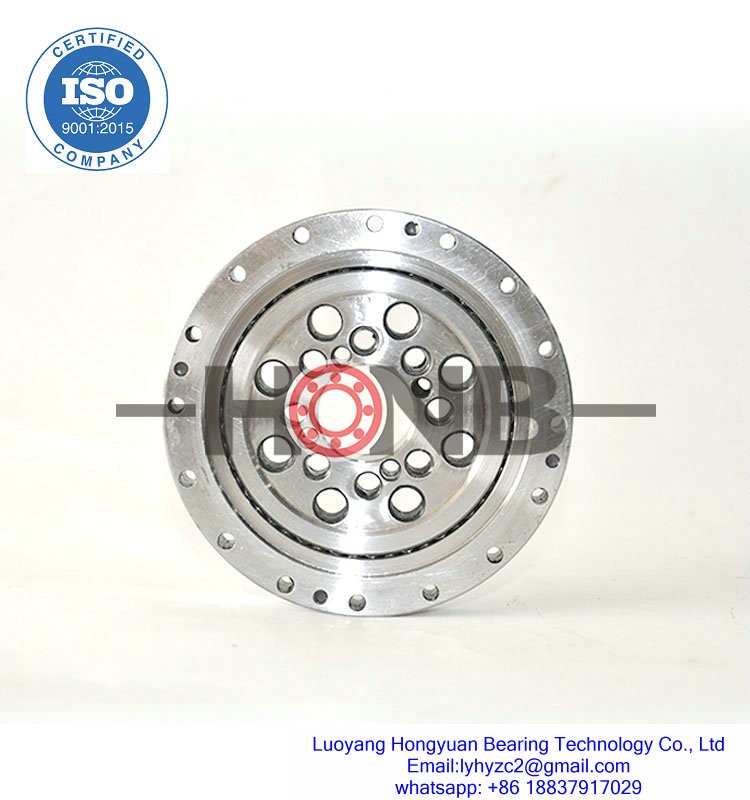

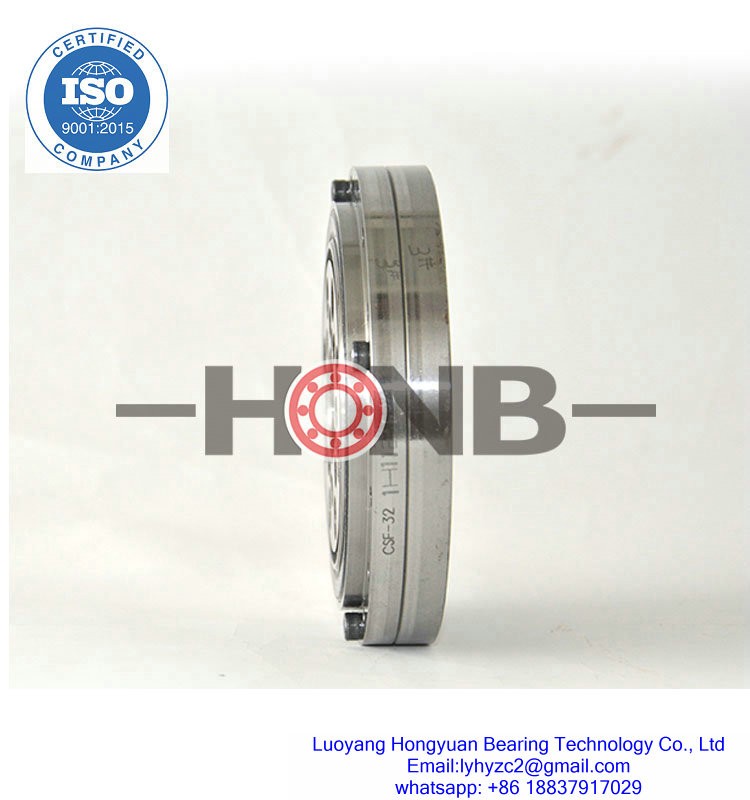

CSG-25 Cross Roller Bearing (20x85x18.5mm) for Harmonic Drive Gear Reducer CSG-25-30-2UH

CSF/CSG/SHF/SHG Series Cross Roller Bearing for Harmonic Drive is cross roller structure.According to its application area there are two types( CSG(CSF) Seriesand SHG/SHFSeries ).Harmonic reducer bearing consists of rigid bearing and flexible bearing. Rigid bearing has four series: CSG(CSF) Series, CSD Series, SHG(SHF) Series, SHD Series. Its model name same with the corresponding according harmonic reducer name. Flexible bearing’s name is HYR

CSG(CSF) Series (Outer ring split,inner ring integraty)

Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSG(CSF) Series harmonic drives.

CSG(CSF) Series

Inner ring integrated and outer ring split. Outer ring has two parts, and inner ring is integrated. No need flange and bearing set. This kind of bearing is mainly applied on CSG(CSF) Series Harmonic Drive Gear output part.

Sinoart enterprise content manager system | Sinoart CMS

CSG(CSF) Series model number (Dimension-d x D X H mm):

CSF-14/CSG-14 Dimension-11x55x16.5mm

CSF-17/CSG-17 Dimension-10x62x16.5mm

CSF-20/CSG-20 Dimension-14x70x16.5mm

CSF-25/CSG-25 Dimension-20x85x18.5mm

CSF-32/CSG-32 Dimension-26x112x22.5mm

CSF-40/CSG-40 Dimension-24(32)x126x24mm

CSF-50/CSG-50 Dimension-32(40)x157x31mm

CSF-65/CSG-65 Dimension-44(52)x210x39mm

Lubrication

CSG(CSF) Series lubrication purpose is to take advantage of the lubricants’ lubrication oil film formed by the frication faces of the ring, rolling elements and spacers to reduce bearing’s
friction and wear and avoid sintering to extend bearing’s service life. In addition, lubricant has functions Of rust protection, noise reduction, vibration reduction, cooling.CSG(CSF)

Series bearing was injected with lithium complex grease. Under general condition, it is no need to grease it again. After bearing greased, bearing friction torque will increase at the
beginning and friction torque will be stable after grease attached raceway and rollers evenly.

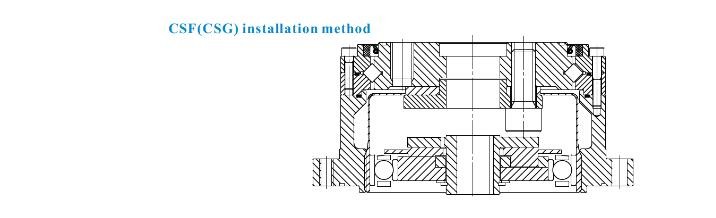

CSG(CSF) Series installation method

Sinoart enterprise content manager system | Sinoart CMS

Installation notes

The main axis, the CSG(CSF) Series bearing set or other parts must be fully cleaned before installment, no greasy dirt or the impurity, and make sure the CSG(CSF) Seriesbearings
have no burr or the fragments. (Be sure that the CSG(CSF) Seriesbearing inner diameter and outer diameter of the CSG(CSF) Seriesbearing meet the requirements, shaft
and CSG(CSF) Seriesbearing bore diameter tolerances meet the requirements.When you tighten the screws, fixing bolt locking from non-full locking to full locking was divided into 3~4
stages, according to criss-cross method repeated locking . Any questions, please feel free to contact us. Before CSG(CSF) Series bearings are finished, the bearings preload has been
adjusted and greased by professional staff, no one is permitted to disassemble the CSG(CSF) Seriesbearing parts or clean inside of CSG(CSF) Seriesbearings without consulting us.
Do not disassemble or clean the bearings internal parts before installation without our permission). Please feel free to contact our after-sales staff if they are not good after CSG(CSF)

Seriesbearing received.CSG(CSF) Series Bearing operating temperature is -20℃ ~+ 80℃, if CSG(CSF) Series bearing operating conditions beyond this range, please contact with our technical staff.

Refer to the material of parts which conjunct with CSG(CSF) Series bearings; you can use aluminum, cast iron.

Model	Dimension										Outer ring mounting hole		Inner ring mounting hole		Inner ring mounting hole		Basic load rating		Mass
	d	D	H	C	B	H2	D1	D2	d1	d2	Center diameter dm	Mounting hole size	Center diameterdn	Mounting hole size	Center diameterd L	Mounting hole size	Cr	Cor	KG
	Unit：mm										Center diameter dm	Mounting hole size	Center diameterdn	Mounting hole size	Center diameterd L	Mounting hole size	KN	KN	KG
CSG(CSF)-14	11	55	16.5	16	13.5	4	41.8	29	29.8	28.4	49	8-φ3.5	23	6-M4	17	6-M4	7	9.1	0.15
CSG(CSF)-17	10	62	16.5	16	13.5	4	49	34	33.8	33.8	56	10-φ3.5	27	6-M5	19	6-M5	7.6	10.7	0.24
CSG(CSF)-20	14	70	16.5	16	13.5	4.5	56.5	41	40	40	64	12-φ3.5	32	8-M6	24	8-M5	8.5	13.4	0.2
CSG(CSF)-25	20	85	18.5	18	16.5	3.5	67	535	52.6	52.6	79	16-φ3.5	42	8-M8	30	8-M6	13.8	21.6	0.45
CSG(CSF)-32	26	112	22.5	21.5	19	4.5	90	68	68.6	68.6	104	16-φ4.5	55	8-M10	40	8-M8	12.5	35.6	0.9
CSG(CSF)-40	32(24)	126	24	22.5	21.5	4.5	105	86	81.2	81.2	117	20-φ5	68	8-M10	50	8-M10	25.9	41.4	1.3
CSG(CSF)-50	40(32)	157	31	30	28	5	131.6	103	102.6	102.6	147	16-φ5.5	84	8-M14	60	8-M14	49.5	85	2.8
CSG(CSF)-65	52(44)	210	39	37	35	7	176	132	132.6	132.6	198	20-φ6.6	110	8-M16	80	8-M16	74.6	133	7.9

If the CSG(CSF) Series bearing size could not be found in the sheet, please contact Yuki(HONBbearing02)
