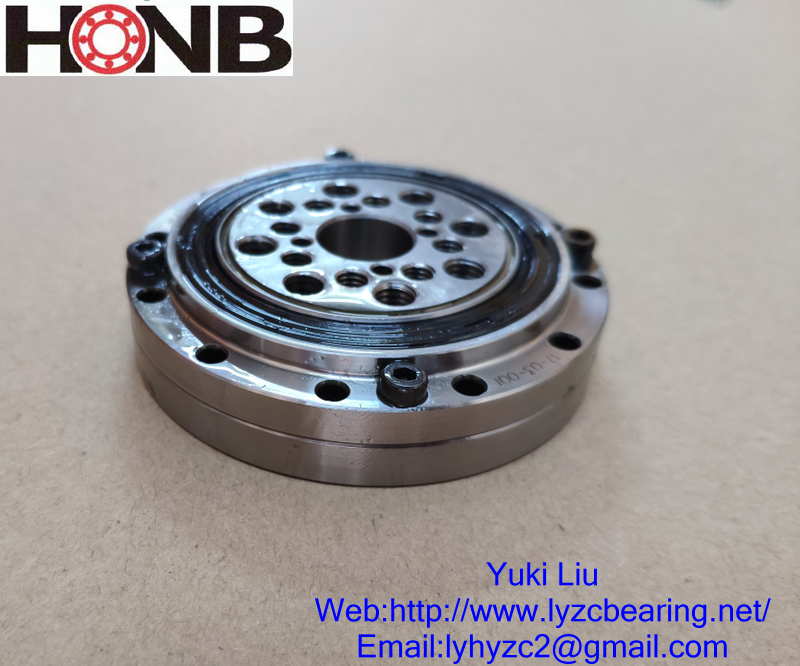

CSG(CSF) Series Crossed Roller Bearings (Outer ring split,inner ring integraty) there is no need of flange and bearing seat.suitable for all kinds of CSF(CSG) series harmonic drives.HONBbearing02
Crossed Roller Bearings for Harmonic Drive is cross roller structure.According to its application area there are two types(CSG/CSF Series and SHG/SHF Series ).This harmonic reducer bearing’s Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accuracy and load carrying capacity. This crossed roller bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.
Harmonic reducer is usually applied on robots, machine tool, and aerospace industries which have high requirements on harmonic reducer precision, rigidity, and load capacity.
So it has high requirements to harmonic reducer parts machining precision and mounting precision and also to bearings. For rigid bearing, the most important are the bearing rigidity, reliability, and rotation precision. Rigid bearing usually has some preload before leaving the factory in order to guarantee bearing has enough rigidity.
| Model | Dimension | |||||||||
| d | D | H | C | B | H2 | D1 | D2 | d1 | d2 | |
| Unit:mm | ||||||||||
| CSG(CSF)-14 | 11 | 55 | 16.5 | 16 | 13.5 | 4 | 41.8 | 29 | 29.8 | 28.4 |
| CSG(CSF)-17 | 10 | 62 | 16.5 | 16 | 13.5 | 4 | 49 | 34 | 33.8 | 33.8 |
| CSG(CSF)-20 | 14 | 70 | 16.5 | 16 | 13.5 | 4.5 | 56.5 | 41 | 40 | 40 |
| CSG(CSF)-25 | 20 | 85 | 18.5 | 18 | 16.5 | 3.5 | 67 | 535 | 52.6 | 52.6 |
| CSG(CSF)-32 | 26 | 112 | 22.5 | 21.5 | 19 | 4.5 | 90 | 68 | 68.6 | 68.6 |
| CSG(CSF)-40 | 32(24) | 126 | 24 | 22.5 | 21.5 | 4.5 | 105 | 86 | 81.2 | 81.2 |
| CSG(CSF)-50 | 40(32) | 157 | 31 | 30 | 28 | 5 | 131.6 | 103 | 102.6 | 102.6 |
| CSG(CSF)-65 | 52(44) | 210 | 39 | 37 | 35 | 7 | 176 | 132 | 132.6 | 132.6 |
1.Products Advantages
HONB bearing possesses the characteristics of high precision, high reliability and long life.
Accept customized products, accept OEM / ODM.
2.Fast Delivery
From ZKLDF100~ZKLDF650, we have enough stocks of parts.
The lead time is within 10 days.
3.Good service
Pre-sales technical support, after-sales technical guidance communication, 24 hours online.
4.Warranty
QC team inspect the product from original process to final packing according to drawing detail.
ZKLDF Axial/Radial Angular Contact Ball Turntable Bearing, we offer 2 years warranty.
if bearing problems, we replace new bearing at DDP cost.
Luoyang Hongyuan Bearing Technology Co., Ltd. (HONB) was established in December 2005, located in the Luoyang ,China. HONB with more than 300 employees which specializes in manufacture of YRT rotary table bearings, crossed roller bearings and robot reducer bearings. The precision grades are P2, P4 and P5, and the size range is 20mm ~2000mm.
